Custom & Replacement Hinges

When You Can't Source the Hinge You Need

Standard hinges are everywhere. The trouble starts when yours isn't standard: a discontinued boat hatch hinge, an offset stainless piano hinge nobody stocks in your length, a heavy-duty bearing hinge in an odd leaf size, or a hinge that has to land on an existing hole pattern you can't move. You search every catalogue, post on the forums, and still come up empty — because the hinge exists on your door, just not on any shelf.

That's the hinge EKINSUN makes. Send the worn or broken original — or photos and the hole spacing — and we machine a replacement to match it exactly, in the right material for where the door lives. No drawing, no part number, single pieces welcome.

Hinge Types We Make

Reproduced from your sample, or made to your sizes — most without a drawing:

Hinge type	Typical use
Butt	Doors, cabinets and lids — the standard leaf-and-knuckle hinge
Strap & T-strap	Heavier doors, gates, hatches and lockers needing broad support
Piano / continuous	Long lids and panels — made to your length, leaf width and knuckle count
Offset	Set-back or overlay doors where the pivot must sit off the leaf line
Flush-mount	Where leaves must sit level without mortising
Bearing / heavy-duty	High-cycle or heavy doors — bearing knuckles to resist sag
Marine hatch / deck / seat	Boats and decks — 316 stainless against saltwater corrosion
Weld-on & concealed	Fabricated structures and clean-look interior doors

When Off-the-Shelf Won't Do

These are the situations a catalogue can't solve — and where a made-to-order hinge is the only real fix:

• Discontinued boat or RV hinge — the maker dropped the model or closed. See obsolete & discontinued parts.
• Offset or odd-length piano hinge — the classic "where do I even source this?" problem.
• Must match an existing hole pattern — re-drilling the door or frame isn't an option.
• Heavy-duty in 316 — you need marine grade and strength, not a light zinc casting.
• Worn pin or knuckle — the leaves are fine but the hinge sags or has play.

Materials — Matched to the Environment

Made From Your Old Hinge

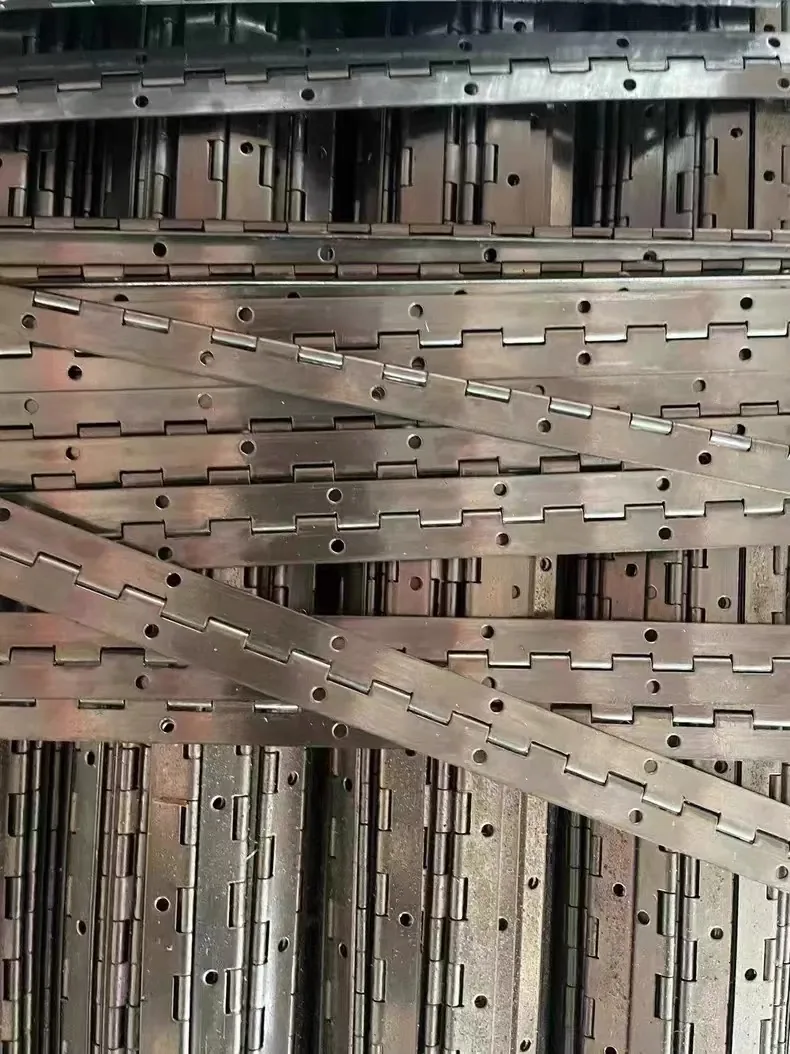

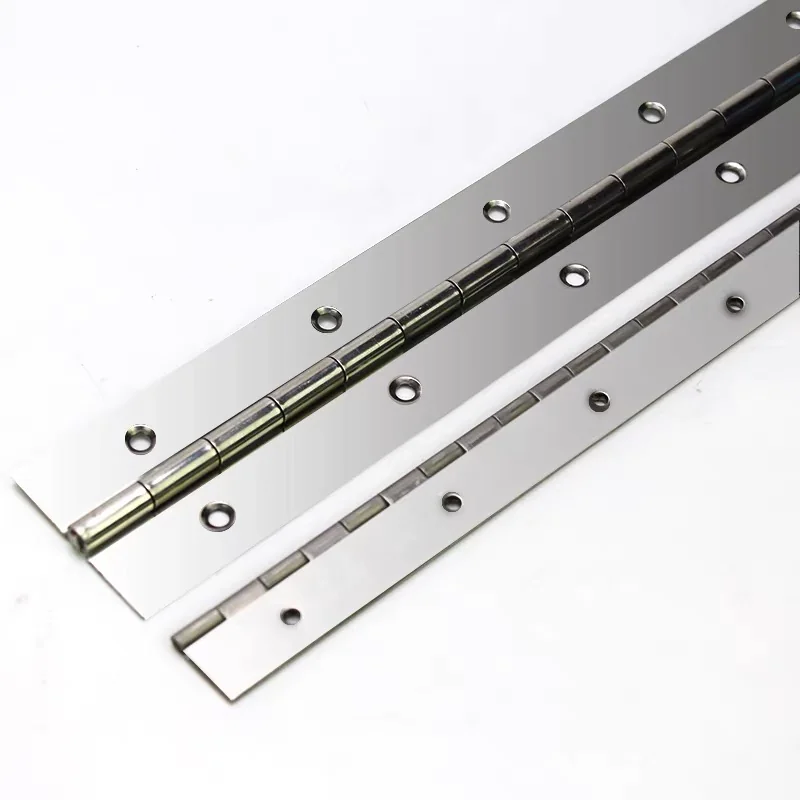

Continuous (Piano) Hinge Sizes — the Catalogue Grid and Where It Stops

Catalogue continuous hinges come in a short grid of open width by thickness, in 1,000–1,020 mm or 6 ft lengths that you cut down. The grid is what a stockist can sell today; everything to the right of it — a longer piece in one length, a thicker leaf, a wider leaf, a stainless pin in a steel hinge, an offset or a hole pattern that must match — is made to order from 1 piece.

Continuous hinge sizes: the catalogue grid you can buy today, and the sizes that are made to order

What you need	On the shelf?	What we do
20 mm wide, 0.8 mm leaf, about 2 mm pin, 10–12 mm knuckles, 1,000 / 1,020 mm	Yes — light lids, electronics enclosures	Buy it from stock — a stockist cuts it to length; ask us only when the material, pin or holes differ.
27–32 mm (1-1/16", 1-1/4") wide, 1.0 mm (0.040") leaf, 2.3 mm (0.091") pin, 12.7 mm knuckles, 6 ft (1,829 mm)	Yes — the US steel series	Buy it from stock, cut to length.
30 mm wide, 1.0 mm leaf, about 2.5 mm pin, 1,000 / 1,020 mm	Yes	Buy it from stock.
38–40 mm (1-1/2") wide, 1.2 or 1.5 mm leaf, 3 mm class pin, 1,000 / 1,020 mm or 6 ft	Yes — the most common cabinet and panel size	Buy it from stock; made to order only in 316 (1.4404) or with a hole pattern that must match.
50 mm (2") wide, 1.2 or 1.5 mm leaf, 3–4 mm pin, 1,000 / 1,020 mm or 6 ft	Yes	Buy it from stock.
60 mm wide, 2.0 mm leaf, 4 mm class pin, 1,000 / 1,020 mm	Yes — fewer stockists	Buy it from stock where listed; otherwise made to order from 1 piece.
80 mm wide, 3.0 mm leaf, 5–6 mm pin, 1,000 mm	In 304 (1.4301) from a few makers	316 or any other length made to order.
Any width above, longer than 1,020 mm in one piece — a 1,150 mm hinge, for example	No	Made to order from 1 piece, to about 2,000 mm in one length and longer in joined sections; one hinge, not a 1,000 mm hinge plus a stub.
Wider than 80 mm or thicker than 3 mm — machinery guards, hatches, heavy lids	No	Made to order: 3–6 mm leaf, 6–10 mm pin, 304 / 316 stainless, 6061 aluminium or steel.
Unequal leaves, offset or swaged, countersunk holes to an existing pattern	No	Made to order: the leaf, the offset and the holes taken from your old hinge.
A steel hinge with a stainless or bronze pin, or 316 (1.4404) throughout	No	Made to order: the pin is what wears; 316 for marine and washdown.

Grid from stockist ranges (steel series: 1-1/16" to 2" open width, 0.040" leaf, 0.091" pin, 1/2" knuckle; stainless series: 20 × 0.8 to 80 × 3 mm in 1,000–1,020 mm). Pin diameters outside the US series are typical for the width and are confirmed per part; materials are 304 (1.4301), 316 (1.4404), 6061 aluminium or steel. Lengths and thicknesses we machine are typical and confirmed per part; the capacity depends on the leaf and the pin, not on the length.

A recent request shows what the grid misses: a continuous hinge about 1,150 mm long in 304 stainless, about 3 mm thick, from photos of the old one. Nothing in a catalogue is that long in one piece at that thickness, so it is made — and the first thing the quote needs is not the length but the open (unfolded) width, the pin diameter, the hole diameter, the hole spacing and the edge distance, because those are what the new hinge must match. Measure them on the old hinge with a caliper, or send the hinge; we take the rest from it. Weld-on and lift-off versions follow the same table.

What to Send Us

To quote a matching hinge fast, send what you can measure:

• The worn or broken hinge, or photos open and closed from several angles
• Hole pattern — screw/bolt hole spacing, diameter and countersink (the part that must match)
• Leaf length and width, and overall open length
• Knuckle / barrel count and pin diameter
• Handing or offset, if any, and whether the pin is fixed or removable
• Material/finish you need — or ask us to advise for the environment
• Quantity (one, a pair, or a matched set) and delivery country
