Custom Hydraulic Adapters

When a Hydraulic Fitting Is Obsolete or Non-Standard

Hydraulic systems fail in awkward ways: a cracked adapter on old machinery, a fitting that converts two standards no supplier carries, or a connector the OEM no longer makes. With the line down, you can't wait weeks. EKINSUN machines hydraulic adapters and fittings built for the working pressure, to spec or from the broken one you have.

Tell us the fitting on each end and the system pressure, or send the old part — we reproduce it in the right steel and seal type.

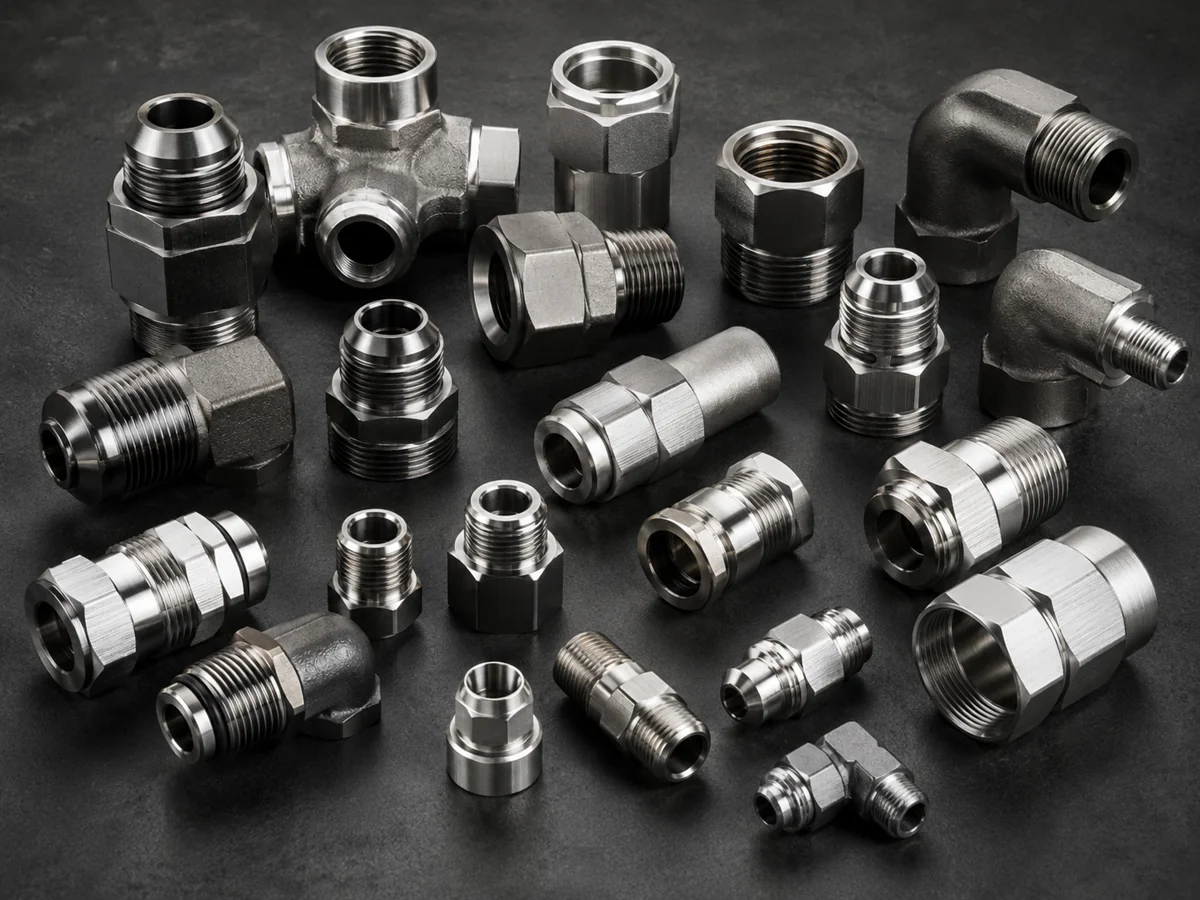

Hydraulic Fittings We Machine

Built for Pressure & Sealing

Concern	How we handle it
Working pressure	Material and wall section chosen for the rated pressure; steel for high-pressure lines

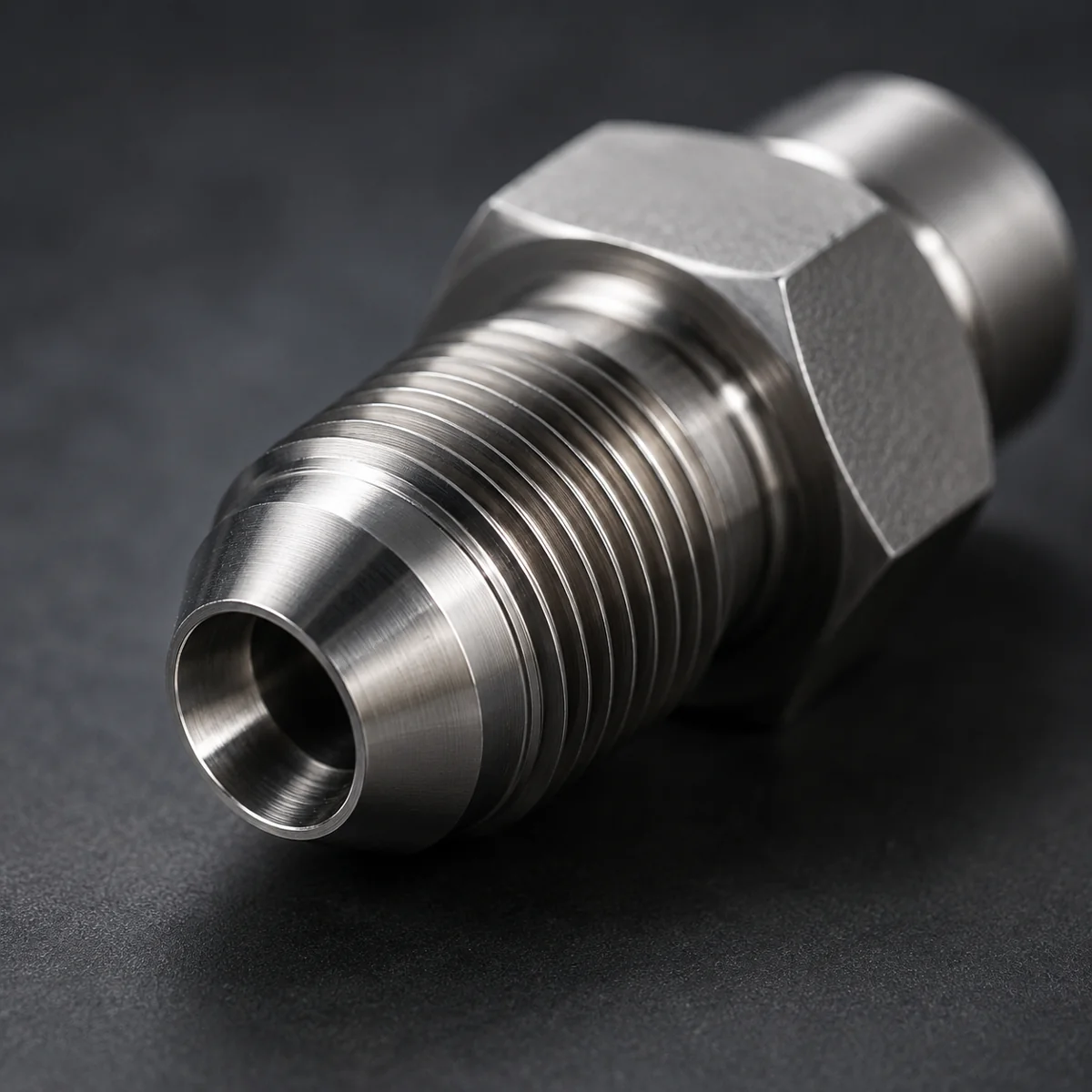

Seal geometry	37° cone (JIC), face O-ring (ORFS), O-ring boss (SAE), taper (NPT/BSPT) machined precisely
Material	Carbon/alloy steel (often zinc-plated) or 316 stainless for corrosion/marine
Bore	Sized to avoid restricting flow

Each of those seal families seals in a different place, and on a one-off part the sealing feature — not the thread — is what decides whether the joint holds. Custom sealed metal parts — every sealing form we cut, and how we prove contact before dispatch.

Where the Hydraulic Fitting Catalogue Stops

Common JIC, ORFS and NPT combinations are stocked by every hose shop and you should buy those. These are the ones that reach us instead.

What you need	In the catalogue?	How we machine it
JIC 37° male × NPT male, common size	Stocked	Buy it off the shelf. Every hose shop carries it and it will be cheaper than anything we turn.
JIC 37° one end × metric M port the other	Rare	Imported machine into a US hose assembly, or the reverse. The 37° cone is cut on our end, the metric port to your pitch.
ORFS face O-ring × BSPT taper	No	Two different sealing principles on one part — a flat face carrying an O-ring against a thread that seals on itself. Both machined on one bar.
SAE O-ring boss × anything not SAE	Thin	The boss seat and its chamfer are cut to the ORB spec on our end, whatever standard goes on the other.
An obsolete machine port with no part number	No	Measured from the fitting you send, or from the port itself if the fitting is gone.
Bore sized so it does not restrict flow	No	Catalogue adapters have one bore. We open it to suit the line rather than the thread.
Bulkhead or extra-long body through a panel	No	Body length cut to your plate thickness with a lock-nut face.
316 stainless rather than zinc-plated steel	Rare	Standard hydraulic adapters are plated carbon steel. 316 for marine, offshore and chemical duty.
Left-hand thread on either end	No	Not a catalogue item in any hydraulic standard.

Sealing forms above are the four this page already covers: 37° cone (JIC), face O-ring (ORFS), O-ring boss (SAE) and taper (NPT/BSPT).
