What a Cold Plate Has to Do
Liquid cold plates pull heat out of power electronics, lasers, battery packs and inverters. The job has three hard requirements at once: a coolant channel routed for even heat pickup, a flat mating face that makes intimate thermal contact with the devices it cools, and a sealed, leak-free liquid path. Aluminium is the natural material — light, highly conductive, and easy to machine — but every one of those requirements is a machining discipline.
The make-or-break detail: flatness of the contact face. A cold plate that isn't flat leaves air gaps, and air is an insulator — the cooling simply fails. We hold the face flat so heat actually crosses the interface.
How It Was Made

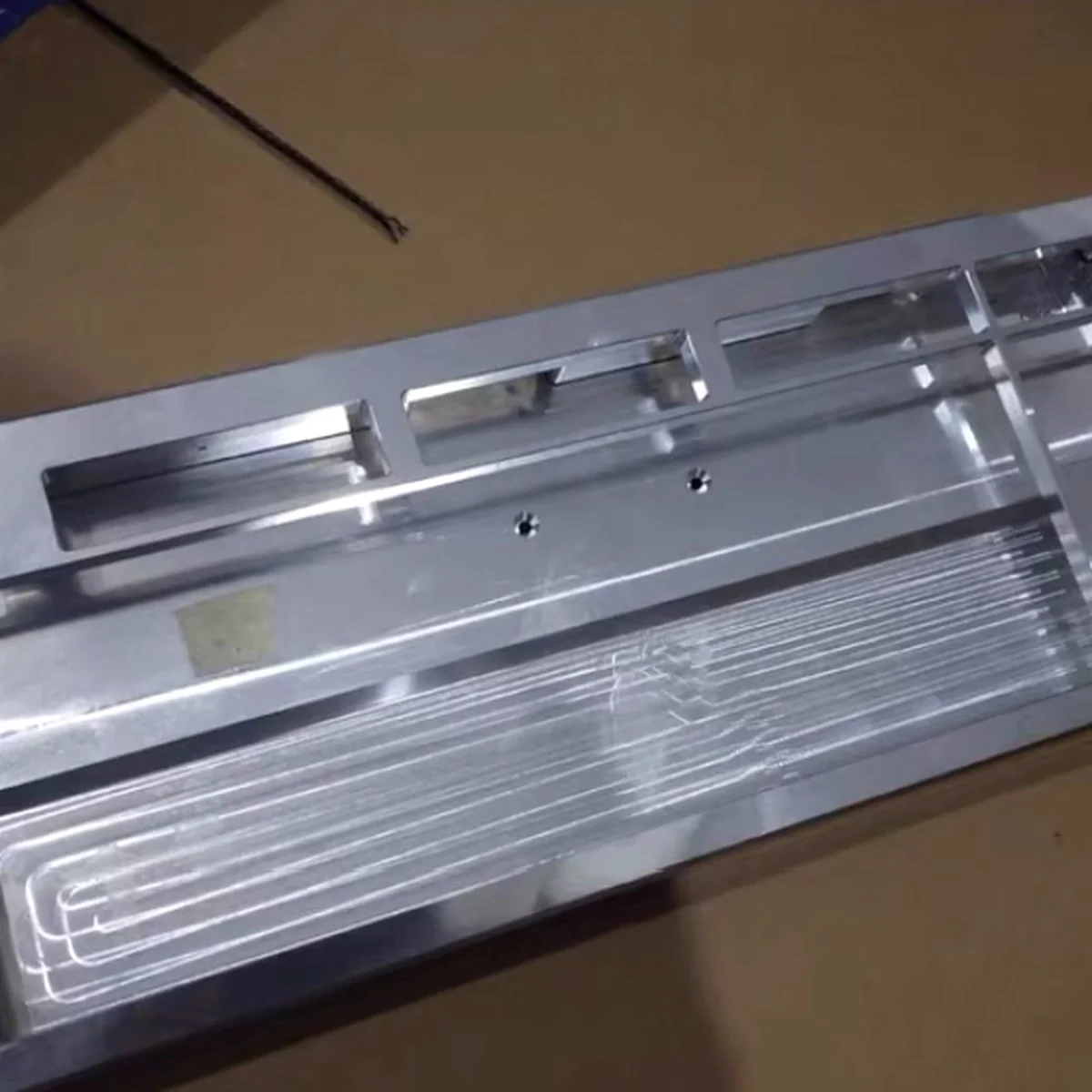

1 — Mill the channel
The coolant channel was milled into the plate, routed to spread flow across the heat-source footprint. Channel width, depth and path all affect flow resistance and how evenly heat is collected, so the geometry follows the cooling layout, not just the outline. This plate sits in the milled band above 3 mm, where the channel flushes easily and seals cheaply; taking the same plate down to microchannel scale under 1 mm buys heat transfer per unit volume but costs pressure drop and makes blockage, not thermal shortfall, the thing that ends its service life.
2 — Hold the contact face flat
The mating face was machined flat and to a fine finish, because thermal contact resistance is set by flatness and surface quality. Tight, repeatable tolerance and flatness control is what separates a working cold plate from a warm one.
3 — Seal & leak-test
The channel is closed (by a sealed cover or plug) and the liquid path leak-tested before shipping — a cold plate that leaks onto live electronics is worse than no cold plate at all. Inlet/outlet ports are threaded to the customer's fitting standard. The plate is machined from machining-grade aluminium matched to the application.
The Workflow
Route the channel
Coolant path milled to spread flow across the heat-source footprint.
Finish the contact face
Mating face machined flat and fine for low thermal contact resistance.
Seal & port
Channel closed and sealed; inlet/outlet threaded to the fitting standard.
Leak-test & inspect
Liquid path pressure/leak-tested; flatness verified before shipping.
Outcome
A cold plate that does the unglamorous but critical job perfectly: coolant where it's needed, a flat face that actually transfers heat, and a sealed path that doesn't leak. Thermal and precision parts like this sit squarely in our industrial equipment work — from a single prototype plate to a production batch.
Need a cold plate or thermal part? Send your drawing, a sample, or your cooling layout and footprint. We machine it flat, seal it, and leak-test it. Email [email protected] or message us on WhatsApp.
