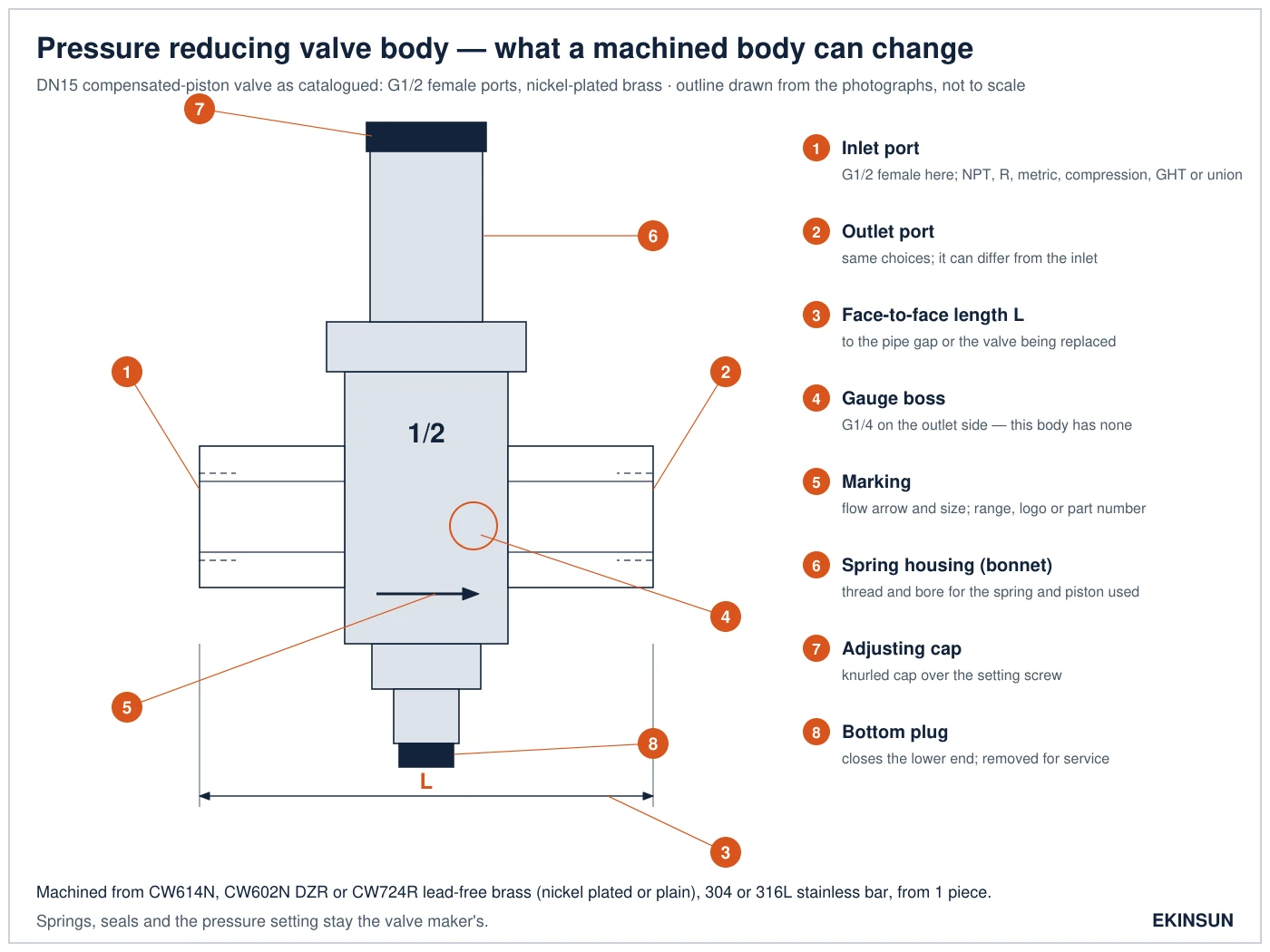

A pressure reducing valve body — catalogue or machined

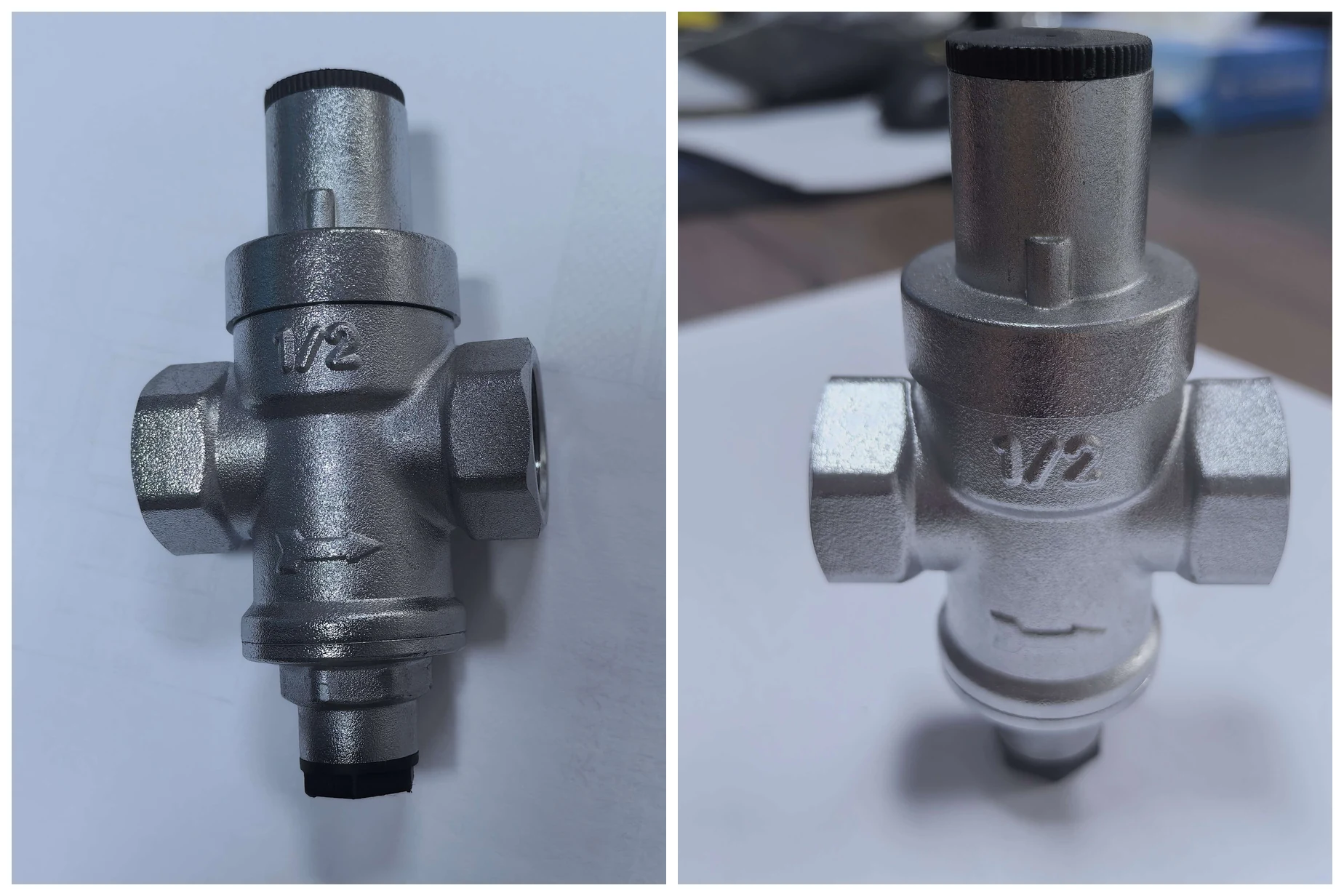

The valve in the photographs is a DN15 compensated-piston pressure reducing valve as the supplier specifies it: G1/2 female ports to ISO 228 at both ends, a nickel-plated brass body, inlet up to 20 bar, outlet adjustable from 1 to 7 bar and set at 3 bar, for water, compressed air and glycol at 0–80 °C, with no gauge port. The right-hand column is what changes when the body is made to order; the piston, spring and seat design stay the valve maker’s.
| Feature | Catalogue body (photographs) | Body made to order |
|---|---|---|
| Ports | G1/2 female both ends, ISO 228 parallel | NPT, R, metric fine, 15 mm compression, garden hose thread or union; inlet and outlet can differ |
| Body material | nickel-plated brass | brass as delivered — nickel plated or plain — in CW614N, CW602N DZR or CW724R lead-free; or 304 (1.4301), 316L (1.4404) |
| Gauge port | none | G1/4 boss on the outlet side, or on both sides |
| Face-to-face length | as catalogued | to the pipe gap, or to the valve being replaced |
| Working principle | compensated piston | unchanged — the bores are machined for the piston, seat and spring used |
| Inlet pressure | up to 20 bar (valve maker’s figure) | stated by the valve maker for the complete valve; not claimed for a machined body |
| Outlet setting | 1–7 bar, set at 3 bar | set by the spring and the adjusting screw |
| Media and temperature | water, compressed air, glycol; 0–80 °C | the body material is chosen for the medium |
| Marking | flow arrow and 1/2 cast in | arrow, size, range, logo or part number laser-engraved or stamped |
Need valve bodies in a size, thread or material no catalogue lists? EKINSUN is a custom parts manufacturer: we make valve bodies to your drawing, sketch or sample — brass, 304 or 316L stainless steel, ductile iron or cast steel — from 1 piece, quoted in 12 hours and shipped duties paid. Standard sizes can often be supplied from stock; the more pieces, the lower the unit price. How ordering without CAD works →
A body that only needs another port is often cheaper as a catalogue valve with a machined adapter on each end — the valve fittings page shows the same valve on eight different lines. The body itself is made when the adapters would make the assembly too long, when a gauge boss is needed, or when the material has to change.
Valve bodies by valve type — how each one is made
| Valve body | Sizes and ends | Usual route | Usual materials | What changes in a custom body |
|---|---|---|---|---|
| Pressure reducing valve body (PRV, pressure regulator body) | DN15–DN50 threaded; larger flanged | hot-forged brass, machined; large sizes cast | CW617N brass, nickel plated; bronze; ductile iron | ports, gauge boss, length, 316L |
| Gate valve body (wedge gate, knife gate) | DN15–DN50 threaded; DN50 and up flanged | sand cast; small steel valves forged | bronze, ductile iron, WCB, CF8M; A105 forged | face-to-face to fit an old gap, end connection |
| Globe valve body | threaded and flanged | sand cast; small steel valves forged | WCB, CF8M, bronze; A105 | seat size, ends, bonnet flange |
| Check valve body (swing, lift, in-line spring) | threaded small; flanged large | swing: sand cast; in-line spring: machined from bar | ductile iron, WCB, bronze, brass, 316 | cracking-spring pocket, ends, length |
| Dual-plate (wafer) check valve body | wafer between flanges | sand cast | ductile iron, WCB, CF8M | face width, hinge-pin bores |
| Butterfly valve body (wafer, lug, double-flanged) | DN40 and up | sand cast | ductile iron EN-GJS-400-15, CF8M, aluminium bronze | lug tapping, stem bores, liner seat |
| Ball valve body and end cap (1-, 2-, 3-piece; flanged) | DN8–DN50 threaded; flanged larger | forged brass; investment-cast CF8M; sand-cast WCB | CW617N, CF8M, WCB | end cap with another port, 316L body, actuator pad |
| Needle and instrument valve body | 1/8–1/2 in | machined from bar | 316, brass | ports, panel-nut thread, gauge ports |
| Solenoid valve body | DN8–DN25 | forged brass or machined from bar | CW617N, 303, 304, 316 | port thread, orifice, manifold mounting |
| Y-strainer and basket strainer body | threaded and flanged | sand cast; small ones forged | ductile iron, WCB, CF8M, bronze, brass | screen seat, blow-off port, ends |
| Bonnet, yoke, gland, cover | with the body | same route as the body | same as the body | stem bore, packing, bolt circle |
Typical practice, not a rule: small bodies move to bar machining at low quantity; the same body can be forged, cast or machined depending on how many are needed.
Valve body material chart — ASTM, EN and JIS
How can you tell what a valve body is made of?
Most valve bodies carry their material cast or stamped on the body, with the nominal size, the pressure class and a flow arrow (EN 19 in Europe, MSS SP-25 in the US): GG-25 or EN-GJL for grey iron, GGG-40, EN-GJS or DI for ductile iron, WCB for cast carbon steel, CF8M or 1.4408 for cast 316 stainless. Without marks, a magnet sticks firmly to iron and carbon steel, weakly or not at all to cast stainless, and not at all to brass or bronze; under nickel plating, brass shows yellow and bronze reddish at a scratch.
Valve drawings and data sheets name the body material in one standard; the grade letters below are the nearest equivalents in the other two. CF8M on a valve body is cast 316 stainless to ASTM A351; WCB is weldable cast carbon steel to ASTM A216.
| Material | ASTM | EN (number) | JIS | Where it is used in valves |
|---|---|---|---|---|
| Cast carbon steel | A216 WCB | GP240GH (1.0619) | SCPH2 | gate, globe and check valves; water, steam, oil |
| Cast carbon steel, low temperature | A352 LCB | G20Mn5 (1.0622) | SCPL1 | valves below −29 °C |
| Cast stainless 304 | A351 CF8 | GX5CrNi19-10 (1.4308) | SCS13 | water and food valves |
| Cast stainless 316 | A351 CF8M | GX5CrNiMo19-11-2 (1.4408) | SCS14 | chemicals, seawater, ball valve bodies |
| Cast stainless 316L | A351 CF3M | GX2CrNiMo19-11-2 (1.4409) | SCS16 | welded ends, chloride service |
| Ductile iron | A536 60-40-18 | EN-GJS-400-15 (GGG-40) | FCD400 | butterfly, gate and check valves on water |
| Ductile iron, higher strength | A536 65-45-12 | EN-GJS-450-10 (GGG-45) | FCD450 | the same valves at higher load |
| Grey iron | A48 Class 35 (valves: A126 Class B) | EN-GJL-250 (GG-25) | FC250 | low-pressure water valves and strainers |
| Bronze (gunmetal) | B62 C83600 | CuSn5Zn5Pb5-C (CC491K) | — | water valves, marine valves |
| Aluminium bronze | B148 C95800 | CuAl10Fe5Ni5-C (CC333G) | — | seawater butterfly discs and bodies |
| Forging brass | C37700 | CuZn40Pb2 (CW617N) | C3771 | small forged PRV, ball and gate bodies |
| Forged carbon steel | A105 | P250GH / C22.8 (1.0460) | — | small forged gate, globe and check valves |
| Bar for machined bodies | 304 / 316L; C36000 brass | 1.4301 / 1.4404; CW614N | SUS304 / SUS316L | bodies machined from solid, 1 piece to small batches |
Nearest equivalents, not identical chemistries; the order names one standard. Cast and wrought stainless differ: a 316L body machined from bar (1.4404) replaces a CF3M (1.4409) casting without porosity.
Cast iron or ductile iron valve body?
Grey cast iron (EN-GJL-250, ASTM A48 Class 35) has a tensile strength of 250 MPa and almost no elongation, so it cracks rather than bends; it is used for low-pressure water valves and strainers and machines well. Ductile iron (EN-GJS-400-15 or EN-GJS-450-10, ASTM A536) has its graphite in spheres instead of flakes, 400–450 MPa and 10–15 % elongation, and is the standard body material for butterfly and gate valves on water mains. A cracked grey-iron body is replaced in ductile iron when the flange bolting or water hammer broke it. Every grey and ductile grade with its old DIN, JIS, GB and ASTM names: cast iron vs ductile iron.
| Grade | Tensile strength, min | Elongation, min | Typical valve use |
|---|---|---|---|
| EN-GJL-250 / A48 Class 35 / FC250 / HT250 | 250 MPa | under 1 % | strainers, low-pressure water valves, covers |
| EN-GJS-400-15 / A536 60-40-18 / FCD400 / QT400-15 | 400 MPa | 15 % | butterfly, gate and check valve bodies |
| EN-GJS-450-10 / A536 65-45-12 / FCD450 / QT450-10 | 450 MPa | 10 % | higher-load bodies and discs |
Valve body ports by nominal size — DN, G, NPT and copper tube
| DN | G (ISO 228), major Ø mm | NPT, pipe OD mm | Threads per inch | Copper tube, mm |
|---|---|---|---|---|
| DN15 | G1/2 — 20.955 | 1/2 NPT — 21.34 | 14 | 15 |
| DN20 | G3/4 — 26.441 | 3/4 NPT — 26.67 | 14 | 22 |
| DN25 | G1 — 33.249 | 1 NPT — 33.40 | 11 (G) / 11.5 (NPT) | 28 |
| DN32 | G1-1/4 — 41.910 | 1-1/4 NPT — 42.16 | 11 / 11.5 | 35 |
| DN40 | G1-1/2 — 47.803 | 1-1/2 NPT — 48.26 | 11 / 11.5 | 42 |
| DN50 | G2 — 59.614 | 2 NPT — 60.33 | 11 / 11.5 | 54 |
G is parallel and seals on a washer at the port face; NPT is tapered and seals on the thread. A body can carry a different standard on each port; the fitting thread identification chart reads an unknown port.
Valve body parts in other languages
| English | German | French | Spanish | Italian |
|---|---|---|---|---|
| valve body | Ventilgehäuse, Ventilkörper | corps de vanne, corps de robinet | cuerpo de válvula | corpo valvola |
| pressure reducing valve | Druckminderer | réducteur de pression, détendeur | válvula reductora de presión | riduttore di pressione |
| bonnet, spring housing | Federhaube, Oberteil | chapeau | bonete | cappello |
| gate valve / butterfly valve | Schieber / Absperrklappe | robinet-vanne / vanne papillon | válvula de compuerta / de mariposa | saracinesca / valvola a farfalla |
| check valve / Y-strainer | Rückschlagventil / Schmutzfänger | clapet anti-retour / filtre en Y | válvula de retención / filtro en Y | valvola di ritegno / filtro a Y |
What to send for a valve body
- The valve being replaced, or a photo of it with a caliper across each port, and its nominal size (DN15 = 1/2 in).
- The drawing, if there is one; a sketch with the ports, length and the bores the internals need is enough to quote.
- Each port: thread standard and size, male or female; or the tube or flange it has to meet.
- The medium and temperature — cold or hot water, drinking water, air, glycol, seawater, chemicals — so the body material is right.
- Where the internals come from: the original valve maker, your own parts, or metal internals machined with the body.
- Quantity: 1 piece is machined from bar; a series is quoted with the casting or forging route beside it.
Count the threads before you name the port. 14 threads per inch is G1/2, G3/4, 1/2 or 3/4 NPT; 11 per inch is G1 and larger; 11.5 is 1 NPT and larger. A thread that tapers from the first to the fifth turn is NPT or R; a parallel one is G.
Where the valve catalogue stops
| What you need | In the catalogue? | What we make |
|---|---|---|
| A complete valve, DN15–DN50, G or NPT ports, standard setting range or standard pattern | Yes | Buy it from stock; no machined one-off competes on price with a forged or cast catalogue valve. Standard parts: ask us too — we may have them in stock. |
| The same valve with another port on one end | Partly | Often solved with a machined adapter on the catalogue valve (valve fittings); the body is made when the adapters make the assembly too long. |
| A body in 316L (1.4404) for seawater, glycol with chlorides, food or chemical lines | Partly | Stainless valves exist in some sizes; any other size or port is machined from 316L bar. |
| A body with a gauge boss, drain or sensor port the catalogue body lacks | No | Machined in, G1/4 or a metric port, on the side you choose. |
| A body that drops into the gap left by an obsolete valve | No | Made to the old valve’s face-to-face length and ports; send the old valve. |
| A cracked grey-iron gate, check or strainer body with no drawing | No | Measured from the unbroken faces and made in ductile iron or cast steel — see cast parts. |
| An OEM series body with your marking, arrow and setting range | Partly | Laser-engraved or stamped on machined bodies; cast-in lettering needs a pattern or die for the series. |
| Piston, seat insert, spring cap and adjusting screw | Partly | Machined to drawing with the body; springs and seals come from the valve maker or from you. |
| A pressure rating, drinking-water approval or CE marking on the finished valve | Partly | Approvals belong to the complete valve and its maker; a machined body comes with the material certificate for its bar, and we say so before quoting. |
